| Cab | Cab |
| Front Axle | MFWD |
| Transmission | Partial Power Shift |
| Guidance-ready | Yes |
| Guidance Display | Yes |
| Rear PTO | 540/1000 |
| Rear Tires | Duals |
| Tire Width | Mid |
| Loader | Yes |
| Options | Loader Ready |
| Additional Information | - NO RECEIVER INCLUDED, CommandQuad Eco 40 km/h (25 mph) 20F/20R with Efficiency Manager/
- Single 17.8 cm (7 in.) CommandCenter Display/
- 4100 Processor/
- Premium CommandView III Cab with Active Seat/
- Standard Radio Package/
- Left-hand Reverser CommandQuad Transmission Controls/
- John Deere PowerTech 6.8 L (414 cu. in.) 6 Cylinder Tier 4/Stage V Compliant Diesel Engine/
- 223 L/min (59 gpm) Hydraulic Pump/
- Four Premium Rear Remote SCVs with Electrohydraulic Controls, Premium Couplers and High Pressure Relief Levers/
- 45 mm (1-3/4 in.) 1,000 rpm (20-spline) PTO, 35 mm (1-3/8 in.) 540 rpm (6-spline) / 1,000 rpm (21-spline) PTO/
- Category 3 Adjustable Swinging Drawbar for use with a 38 mm (1.50 in.) Pin/
- Cast Wheels with Single Taper Hubs/

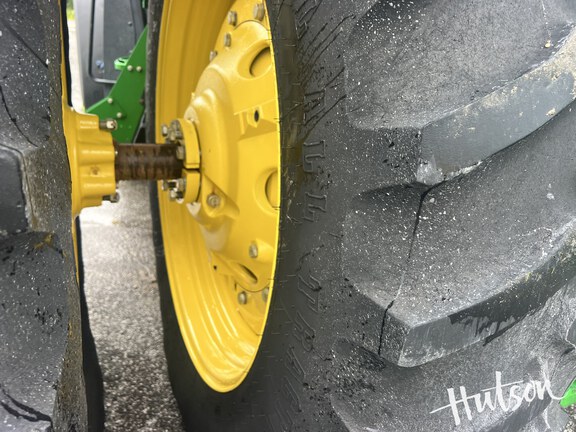

- 480/80R46 158A8 R1 Radial in Dual Wheel Configuration/
- 1300 Series MFWD with Driveline Shield and Limited Slip Differential/

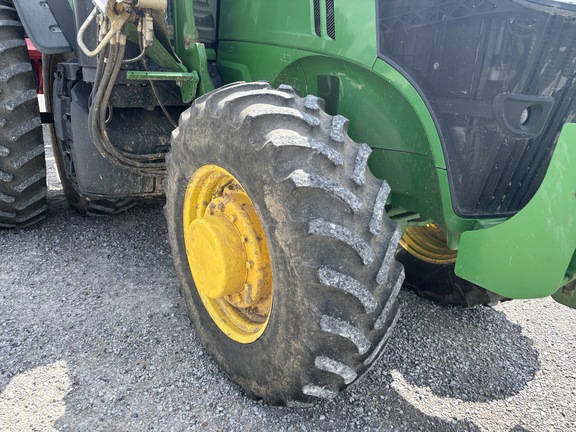

- 480/70R30 152A8 R1W Radial/
- Standard Lighting/
- Fenders, Stationary Front - 620 mm (24.4 in.) Wide - Loader Compatible/
- Fender, Rear Extensions - 2.75 m (108 in.) Width/
- Ethernet Switch/
- Radar with Dual Beam Sensor/
- Foot Operated Speed Control/
- Loader and Driving Light Package/
- High Capacity 240 amp Alternator/
- Loader Ready: Three Function Electronic - Independent Control Valve/
- Weight, front support less weights/
- One Pair 625 kg (1,378 lb) Weights
|
