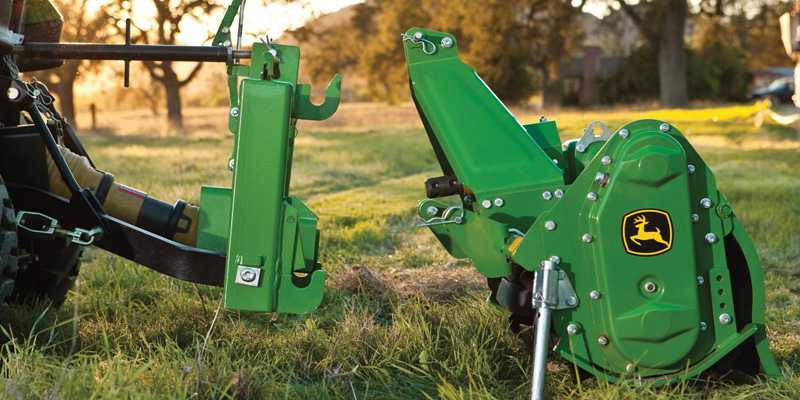

Hooking up a tractor to a rotary tiller with a John Deere iMatch Quick Hitch

What is an iMatch Quick Hitch?

Attaching tractor implements to a 3-point hitch can be hard. The iMatch Quick Hitch from John Deere was designed to make it quick and easy.

The iMatch Quick Hitch is designed to meet the ASAE Category 1 Standard S278.6 for quick-attach hitches, which guarantees it will fit any category 1 implement. The iMatch™ Quick Hitch hooks are Category 3 sized, so all implements will require a set of bushings in order for them to fit properly. One set of LVU15507 bushings is included with the hitch when purchased from us. Bushings and bushing kits are also sold separately so you can install them on more implements at a time.

Part Number Details
LVU15507 Standard 1.97 in. long iMatch™ Quick-Hitch link arm bushing
LVU12858 Short (1.26 in. long) iMatch™ Quick-Hitch link arm bushing
LP19969 iMatch™ Quick-Hitch bushing kit including (2) flanged link arm bushings, (2) roll pins, (1) Cat. 1 to Cat. 2 top link bushing, and (1) Cat. 2 to Cat. 3 top link bushing.

Other bushings may be compatible with the iMatch™ Quick Hitch if they meet the specifications below.

Part Number Inside Diameter Outside Diameter
Upper Top Link Bushing 0.76 in. to 0.77 in. 1.24 in. to 1.25 in.
Lower Link Arm Bushings 0.88 in. to 0.89 in. 1.43 in. to 1.44 in.

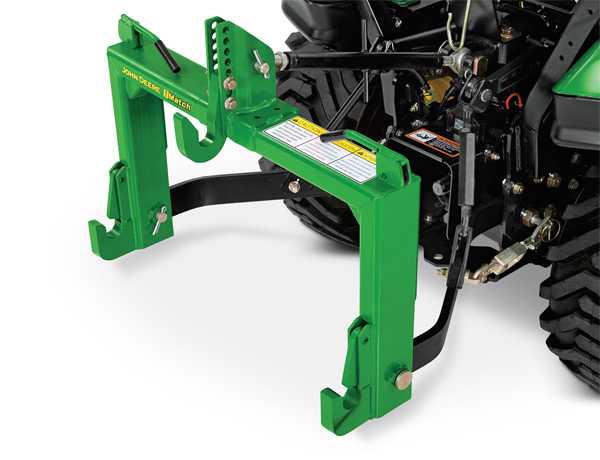

John Deere iMatch Quick Hitch
John Deere iMatch Quick Hitch

Attaching implements with the iMatch Quick Hitch

To attach an implement using an iMatch Quick Hitch, back up to it and line up the middle hook on the hitch to the top pin on the implement. The bottom pins should fall into place as long as the top hook is in line. Lift the implement so that the pins slide into the hooks and lock it into place using the locking levers on top of the hitch.

When you’re ready to remove an implment from the iMatch Quick Hitch, unlock the levers on top of the hitch and lower the lift arms until the implement’s pins slide out of the hooks. Check out the video below for a quick demo.

Where to buy a John Deere iMatch Quick Hitch

You can purchase an iMatch quick hitch online at HutsonParts.com or at any Hutson location.

Want to compare the iMatch Quick Hitch to a traditional 3-point hitch? Come by one of our stores or contact us to schedule a demo.

iMatch Quick Hitch dimensions

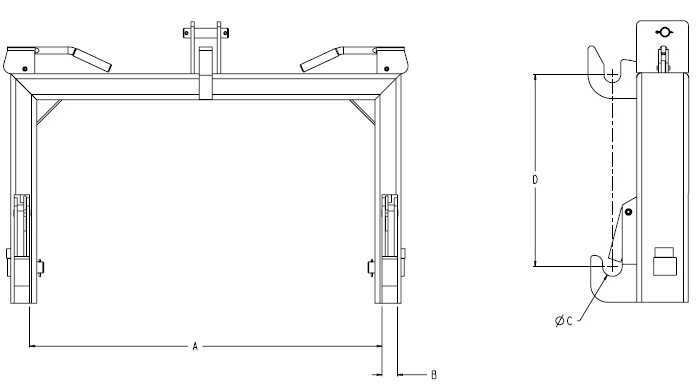

John Deere iMatch Quick Hitch dimensions
John Deere iMatch Quick Hitch dimensions

Label Description Minimum threshold (millimeters) Maximum threshold (millimeters)
A Lower socket inside span 686.56 689.61
B Lower socket width 27.94 29.46
C Lower socket diameter 38.1 38.61
D Upper hook vertical spacing 375.41 377.96

iMatch Quick Hitch implement dimensions

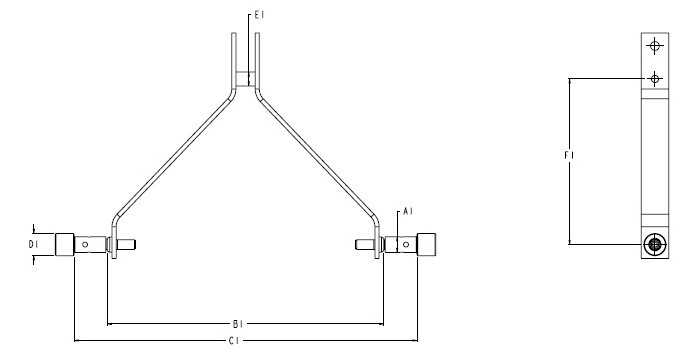

John Deere iMatch Quick Hitch implement dimensions
John Deere iMatch Quick Hitch implement dimensions

Label Description Minimum threshold (millimeters) Maximum threshold (millimeters)
A Lower hitch pin or adapter outside diameter 36.33 36.58
B Lower hitch pin inner shoulder spread 681.0 684.3
C Lower hitch pin outer shoulder spread 750.83 753.88
D Lower hitch pin inner/outer shoulder diameter 50.55 63.75
E Coupler mast pin diameter 31.50 31.75
F Coupler mast pin vertical spacing 379.48 382.53

Additional Resources

Last updated: January 26, 2023

Equipment

Related Resources

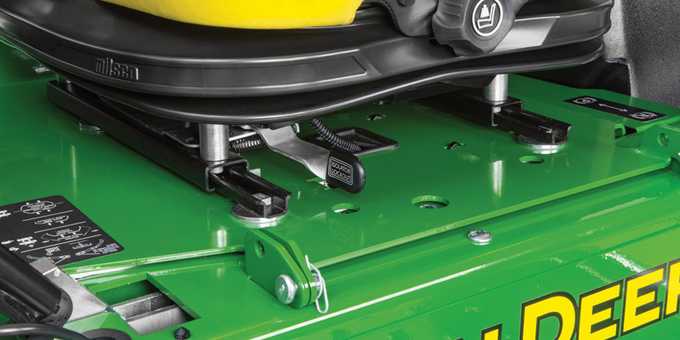

ComfortGlide suspension seat
ComfortGlide Suspension

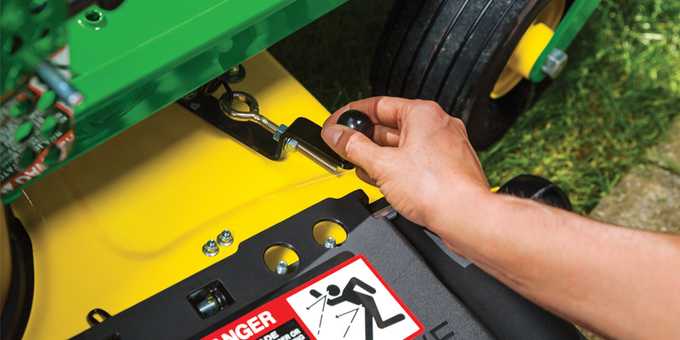

Man switching mowing modes on a John Deere zero-turn mower with a MulchControl Kit
