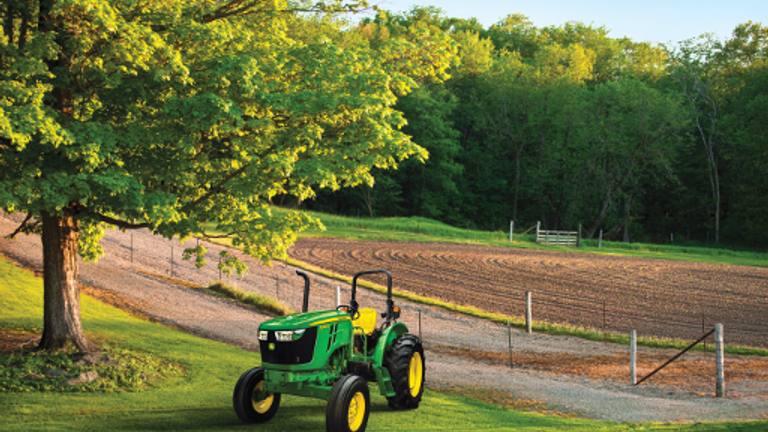

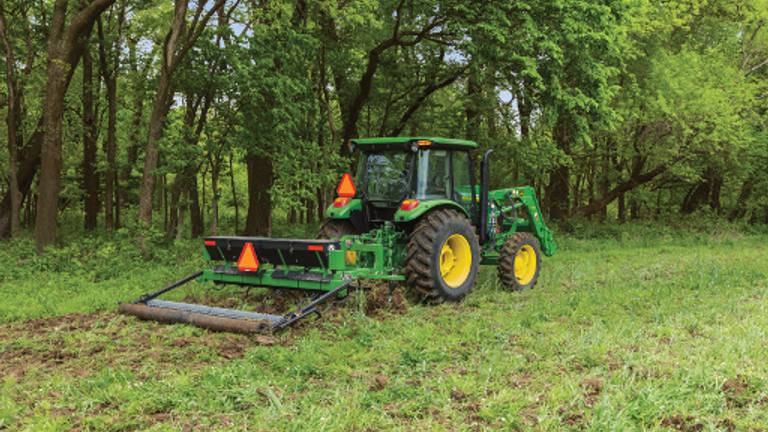

When it comes to hydraulic power and capacity, it's hard to beat the 5E Series. With a rear hitch lift capacity of nearly 3,200 pounds, lifting and transporting those heavier implements - like rotary tillers and heavy seeders - are not an issue. Around the front, add a John Deere loader for up to 3,548 pounds lift capacity.
With 9F/3R SyncShuttle and 12F/12R PowrReverser available on the 55-75 horsepower model and a 12F/12R PowrReverser and 24F/12R PowrReverser transmission available on 85 and 100 horsepower models you'll have easy direction control (forward and reverse) and speed-matching for any application.
The U.S. EPA and Environment Canada requires all off-road diesel engines with 18.6 kW (25 hp) or more to meet stringent FT4 emissions regulations. John Deere uses the most efficient and cost effective solution for the tractor package to meet emissions requirements at each horsepower level. The 5E delivers a hassle-free emissions solution that allows faster work speeds and operation with ease.
The engine powering the 5E is EPA-certified Tier Level 4. This is achieved through a combination of a diesel oxidation catalyst (DOC) and a selective catalyst reduction (SCR) using diesel exhaust fluid (DEF, or urea).
Several defining features on the 5E maximize the performance and reliability of the emissions package. A completely shielded DOC/SCR not only protects essential components from damage but also keeps out dirt and debris. The well-packaged and tightly organized circulation system means there is more room to work around the tractor.
Key components of the emissions system include:
Deere has chosen to utilize an exhaust filter (DOC) to reduce particulate material so the engine can operate at a level which produces less nitrogen oxide (NOx). With less NOx created, it requires less DEF to treat. The result is improved total fluid economy (diesel and DEF).
The engine is programmed to aggressively respond to changes in power needs, which can temporarily increase particulate matter. Since the exhaust filter removes particulate matter instead of the engine, the engine is left free to do what it is designed to do – deliver all of the power, torque, plus transient response needed at the exact moment needed.
DEF is an ISO 22241 standard aqueous urea solution consisting of 32.5 percent urea and has a freezing point of -11° C (12° F). A DEF tank keeps the operator in the field longer even when the temperatures drop below freezing. The DEF tank header is integrated with a temperature sensor and plumbed engine coolant lines are used to promote thawing and prevent freezing in the tank during operation.
Mounted near the DEF tank, the engine control unit (ECU)-controlled supply module draws diesel exhaust fluid from the storage tank and provides a pressurized flow to the dosing module. When the ignition key is off, the supply module pump will reverse direction to return any accumulated fluid back to the tank. The supply module is also fitted with a replaceable filter to prevent contaminants from entering the dosing lines. Both the supply module and dosing lines are electrically heated and controlled by the ECU to determine when diesel exhaust fluid dosing can begin.
The dosing module is cooled by engine coolant and used to inject DEF at a pressure of 900 kPa (130 psi) into the decomposition tube. A harness is connected to the dosing valve that relays the needed DEF to inject based upon the amount of NOx exiting the DOC measured from the NOx tube sensor.
The decomposition tube is the internal mixing device used to circulate DEF with engine exhaust prior to entering the SCR/AOC after-treatment device.
To reduce the NOx, DEF, or urea, is injected into the exhaust stream. When the exhaust gases combine with the DEF in the SCR catalyst, the NOx is broken down into nitrogen and water vapor.
Exhaust gas recirculation (EGR)
How EGR works
EGR reduces the high temperatures where these compounds are formed in the engine cylinders by replacing excess oxygen with a prescribed amount of cooled exhaust gas.
Exhaust gases contain more carbon dioxide than oxygen. The EGR valve, in conjunction with the venturi tube, and ECU, allow a controlled amount of exhaust gas to enter the intake manifold to mix with the incoming fresh air.
Replacing excess oxygen with cooled exhaust gas leads to:
In addition, EGR allows for:
For added performance and efficiency, the engine passes the exhaust gases through an EGR cooler before it enters the engine.
Exhaust airflow enters into the EGR cooler from the exhaust manifold near the turbocharger. Based on engine load, air temperatures, and rpm, the engine control unit (ECU) opens or closes the EGR valve, allowing a measured percentage of exhaust gas to enter the intake manifold. The gases mix with the rest of the incoming air from the turbocharger and aftercooler before entering the cylinders.
The PowerTech PWL 4.5L (274.6-cu in.) engine utilizes one turbocharger — a fixed geometry turbocharger. Fresh air is first drawn into the low-pressure fixed geometry turbocharger and compressed to a higher pressure. The compressed air is then routed to the charge air cooler and then to the intake manifold.
Benefits of air-to-air aftercooling:
Combustion process with externally cooled EGR:
For more information regarding EPA regulations and the technology behind John Deere Integrated Emissions Control systems please visit the following link:
This PowrReverser transmission provides 24 forward speeds and 12 reverse (24F/12R) speeds. This transmission comes standard with a dual speed 540/540 Economy power take-off (PTO), and it is ideal for applications requiring frequent directional changes, such as loader work and PTO work like rotary cutting and baling hay.
Hydraulic wet forward and reverse clutches maximize durability and outlast the life of any dry clutch. When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs.
Two platform-mounted levers offer easy and comfortable shifting. To distinguish the two levers for ease of operation, the gear-shift lever is longer and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two just by feel.
The hi/lo selector buttons are located on the gear shift lever for each forward gear, and are represented by a rabbit and a turtle respectively.
The forward lever selects one of four gears. All are synchronized for on-the-go shifting with the use of the clutch. The rear lever selects one of three ranges: A, B, or C.
Maximum productivity is achieved with clutch-less hydraulic shifting between forward and reverse. PowrReverser functionality is ideal for rear blading and any applications that require frequent directional changes in tight spaces. An electrohydraulic fingertip directional lever control allows the operator to effortlessly switch directions with a small finger motion. The control is located on the left side of the instrument console and selects forward, reverse, and neutral positions. It also allows the operator to steer and shift direction with the left hand, freeing the right hand to operate other tractor controls, such as the loader, rear implements, or hand throttle. The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.
A neutral start switch requires the directional lever be in the neutral position to start the engine.
The speed of directional changes can be adjusted to the operator's preference or application demands with an optional field installed infinitely variable control kit.
24F/12R transmission includes:
All tractors have economy PTO (E-PTO), a fuel-saving feature which allows customers to operate rear implements at 540 PTO rpm but at lower engine rpm. The result is lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption and increased operator comfort.
See the PTO functional area for more information on E-PTO.
Every utility tractor producer wants to maximize uptime and appreciates enhanced performance. The cooling package on the Final Tier 4 (FT4) 4-cylinder 5E Tractors allows for easier access to and serviceability of certain critical components. This improvement to serviceability will save time and also enhance tractor performance.
The cooling package features a first-pass screen to catch larger debris, a slide-out condenser (only on cab tractors) a charge air cooler that tilts forward, and a hydraulic oil cooler that slides out halfway to both sides of the tractor.
The engine is equipped with an electronically controlled fan drive, which means that it only runs as fast as the needs of the tractor demand at that time. This is a fuel-saving device which improves hydraulic cooling and reduces the noise level for the operator. It also positively impacts total fluid efficiency.
An instrument cluster provides more information in a cleaner, more vibrant display. The roll-mode function has the ability to show more diagnostic codes to keep the operator informed about the tractor’s functionality.
This window into tractor functionality and diagnostics provides ample information. Indicators, warning lights, and even gauges are clear and bright. The roll-mode function now provides operators with crucial onboard diagnostics. Engine hours, power take-off (PTO) speed, ground speed, hi-lo indicator, forward, neutral, and reverse are all visible at the same time. There is a light-out indicator for trailer light, turn light, and hazard light bulbs which is driven by updated software. It is a straightforward layout and sleek design with no customer interface required. When operating the PTO, there are clearly presented PTO target bars to indicate the correct PTO speed.
There are daytime and nighttime modes which are based on the position of the light switch. The mode adjusts the backlight levels of the display for optimum visibility.
|Engine description||John Deere PowerTech™ 4045|
|Engine displacement||4 cylinders: 4.5 L|
276 cu in.
|Rated engine power||At 2400 per ISO 97/68/EC: 74.6 kW|
|Rated PTO power (hp SAE)||At 2400 per SAE: 63.4 kW|
|Transmission type||Standard: 12F/12R PowrReverser™|
Optional: 24F/12R PowrReverser
|Hydraulic pump rated output||85.1 L/min|
|Rear hitch category (SAE designation)||Category 2|
|Description||John Deere PowerTech 4045|
|Cylinders liners||Wet sleeved|
|Displacement||4 cylinders: 4.5 L|
276 cu in.
|Rated power||At 2400 per ISO 97/68/EC: 74.6 kW|
|Rated PTO power (hp SAE)||At 2400 per SAE: 63.4 kW|
|Type||Standard: 12F/12R PowrReverser|
Optional: 24F/12R PowrReverser
|Pump rated output||Standard: 85.1 L/min|
|Available flow at a single rear SCV||60.1 L/min|
|Number of rear selective control valves (SCVs)||Two; up to three|
|Number of mid selective control valves (SCVs)||Two; up to three|
|Joystick SCV control||Optional|
|Hitch draft control load sense type||Mechanical|
|Remote control valves available||Two; up to three|
|Hitch category (SAE designation)||Category 2|
|Maximum lift capacity behind lift points||Standard: 1457 kg|
|Sensing type||Top link|
|Engine rpm (at rated PTO speeds)||540 at 2400 rpm|
540E at 1716 rpm
1000 at 2400 rpm
|Differential controls||Mechanical (pedal)|
|Brakes, type and control||Hydraulic wet disc|
|Front||MFWD: 12.4-24 R1|
|Rear||MFWD: 18.4-30 R1|
|Wheel tread range||MFWD: front: 1340-1904 mm|
|Turning radius with brakes||MFWD: 3.54 m|
|Turning radius without brakes||MFWD: 4.36 m|
|Rollover protective structure, OOS||Rigid - foldable - telescopic|
Platform - flat/straddle
Gearshift location - console/floor
|dB(A) rating||78 dBA|
|Wheelbase||MFWD: 2350 mm|
|Approximate shipping weight, Open;Cab||MFWD: Open: 3300 kg|
Cab: 3700 kg
|Fuel tank||Standard: Open: 94.6 L|
25 U.S. gal.
Cab: 114 L/min
30 U.S. gal.
|Country of manufacture||Mexico|
