Side Discharge Buckets

ModelTypeCapacityWeightWidth
SA60 Side Discharge Bucket
Type
Aggregate
Capacity
0.50 cu. yd.
Weight
805 lb. (365 kg)
Width
60 in. (1524 mm)
SA72 Side Discharge Bucket
Type
Aggregate
Capacity
0.67 cu. yd.
Weight
915 lb. (415 kg)
Width
72 in. (1829 mm)
SD72 Side Discharge Bucket
Type
Dust / Mulch
Capacity
1.33 cu. yd.
Weight
1120 lb. (508 kg)
Width
72 in. (1829 mm)
SD84 Side Discharge Bucket
Type
Dust / Mulch
Capacity
1.67 cu. yd.
Weight
1300 lb. (590 kg)
Width
84 in. (2134 mm)

Rollout Buckets

ModelWidthWeightHeaped Capacity
RB72 Rollout Bucket
Width
1850 mm (73 in.)
Weight
532 kg (1,170 lb.)
Heaped Capacity
0.91 m3 (1.19 cu. yd.)
RB84 Rollout Bucket
Width
2150 mm (84.75 in.)
Weight
580 kg (1,275 lb.)
Heaped Capacity
1.10 m3 (1.44 cu.yd.)
RB96 Rollout Bucket
Width
2480 mm (97.5 in.)
Weight
618 kg (1,360 lb.)
Heaped Capacity
1.28 m3 (1.68 cu. yd.)

Multi-Purpose Buckets

ModelOverall WidthHeaped Bucket CapacityEmpty Weight
MP66B Multi-Purpose Bucket
Overall Width
1701 mm (67.0 in.)
Heaped Bucket Capacity
0.5 m3 (15.8 cu. ft.)
Empty Weight
281 kg (620 lb.)
MP72B Multi-Purpose Bucket
Overall Width
1854 mm (73.0 in.)
Heaped Bucket Capacity
0.6 m3 (20.0 cu. ft.)
Empty Weight
408 kg (900 lb.)
MP78B Multi-Purpose Bucket
Overall Width
2000 mm (78.8 in.)
Heaped Bucket Capacity
0.6 m3 (21.7 cu. ft.)
Empty Weight
424 kg (935 lb.)
MP84B Multi-Purpose Bucket
Overall Width
2153 mm (84.8 in.)
Heaped Bucket Capacity
0.7 m3 (23.4 cu. ft.)
Empty Weight
442 kg (975 lb.)

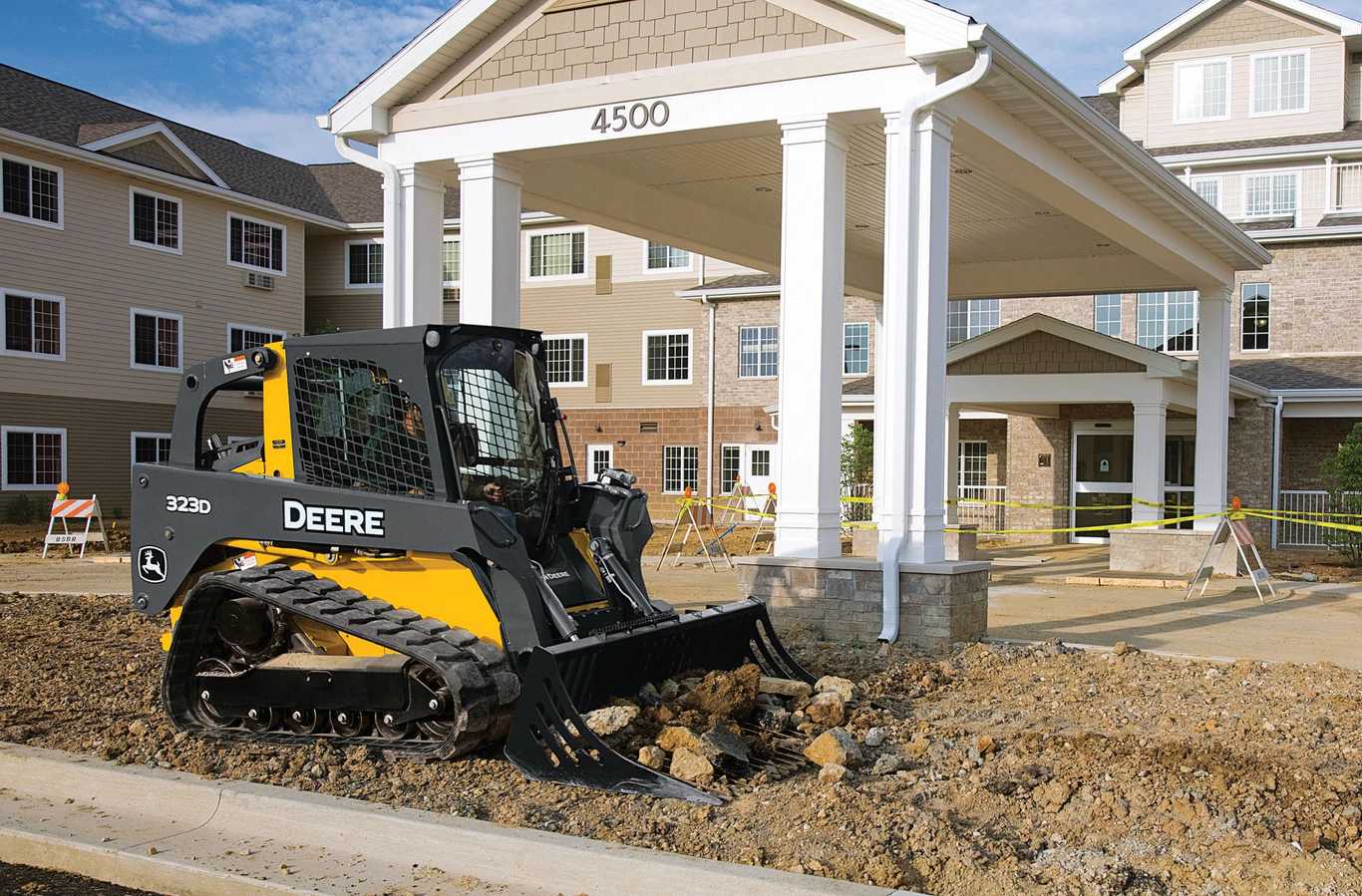

Rock Buckets

ModelWidthWeight
R66 Rock Bucket
Width
1727 mm (68 in.)
Weight
272 kg (600 lb.)
R75 Rock Bucket
Width
1900 mm (74.8 in.)
Weight
295 kg (650 lb.)
R84 Rock Bucket
Width
2093 mm (82.4 in.)
Weight
340 kg (750 lb.)
