Blades & Scrapers

Scrapers

ModelWeightWidth
MS60 Scraper
Weight
458 lb. (208 kg)
Width
60 in. (1524 mm)
MS72 Scraper
Weight
516 lb. (234 kg)
Width
72 in. (1829 mm)
MS84 Scraper
Weight
589 lb. (267 kg)
Width
84 in. (2134 mm)
MS96 Scraper
Weight
656 lb. (298 kg)
Width
96 in. (2438 mm)

Dozer Blades

ModelWeightOverall Width
DB84 Dozer Blade
Weight
1,550 lb. (703 kg)
Overall Width
84.0 in. (2133 mm)
DB96 Dozer Blade
Weight
1,625 lb. (737 kg)
Overall Width
96.0 in. (2438 mm)

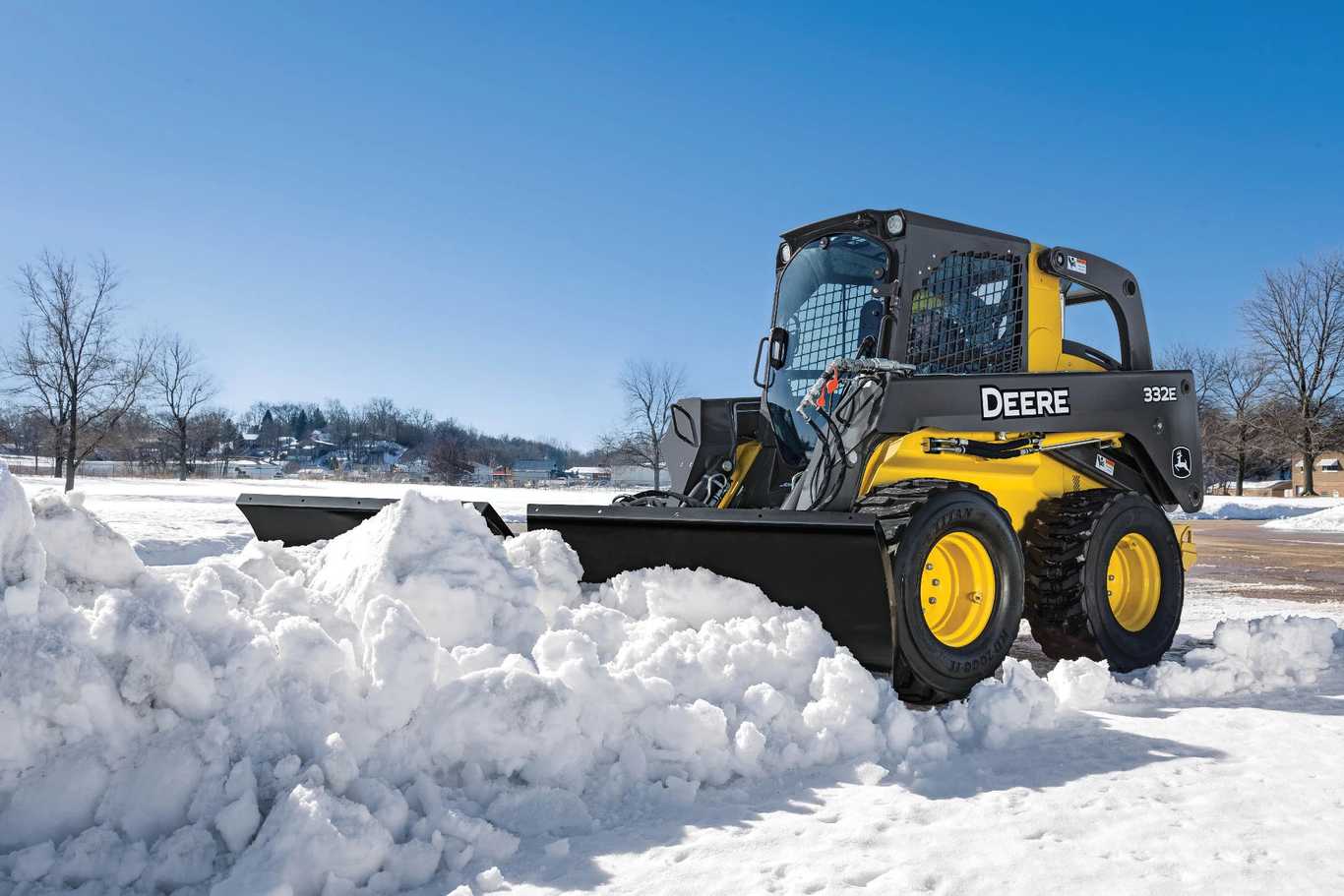

Snow/Utility Blades

ModelWeightAngled WidthWidth
BL6B Snow/Utility Blade
Weight
432 kg (954 lb.)
Angled Width
1575 mm (62 in.)
Width
1829 mm (72 in.)
BL7B Snow/Utility Blade
Weight
461 kg (1016 lb.)
Angled Width
1829 mm (72 in.)
Width
2134 mm (84 in.)
BL8B Snow/Utility Blade
Weight
489 kg (1078 lb.)
Angled Width
2108 mm (83 in.)
Width
2438 mm (96 in.)
BL9B Snow/Utility Blade
Weight
512 kg (1128 lb.)
Angled Width
2362 mm (93 in.)
Width
2743 mm (108 in.)
BL10B Snow/Utility Blade
Weight
540 kg (1190 lb.)
Angled Width
2591 mm (102 in.)
Width
3048 mm (120 in.)

Snow/Utility V-Blades

ModelWeightWidth (Straight)Width (V-Configuration)
BV6 Snow/Utility V-Blade
Weight
441 kg (972 lb.)
Width (Straight)
1880 mm (74 in.)
Width (V-Configuration)
1638 mm (64.5 in.)
BV8 Snow/Utility V-Blade
Weight
480 kg (1,058 lb.)
Width (Straight)
2489 mm (98 in.)
Width (V-Configuration)
2172 mm (85.5 in.)
BV9 Snow/Utility V-Blade
Weight
500 kg (1,102 lb.)
Width (Straight)
2794 mm (110 in.)
Width (V-Configuration)
2438 mm (96 in.)

Box Blades

ModelWeightWidth
PD-72 Box Blade
Weight
1,885 lb. (855 kg)
Width
75.2 in. (1910 mm)
PD-84 Box Blade
Weight
1,935 lb. (878 kg)
Width
87.2 in. (2220 mm)
PD-96 Box Blade
Weight
1,985 lb. (900 kg)
Width
99.2 in. (2520 mm)
