Bale Hugger
| Model | MAX OPENING | LIFT CAPACITY | WEIGHT | |
| AH80 Bale Hugger | MAX OPENING 279.40 cm (110 in.) | LIFT CAPACITY 1088.62 kg (2,400 lb.) | WEIGHT 217.72 kg (480 lb.) |
|---|

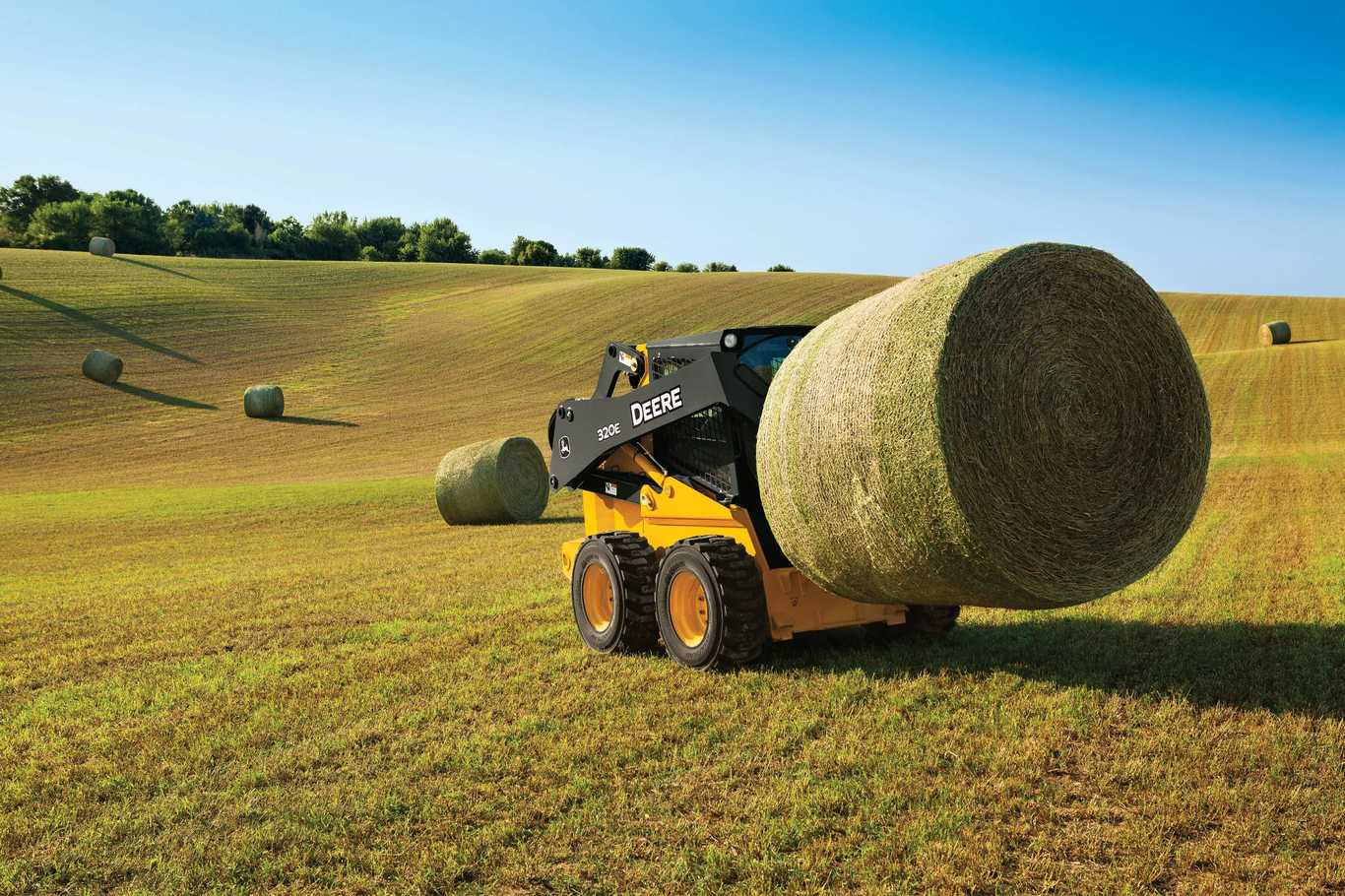

Bale Spears
| Model | Weight | NUMBER OF MAIN TINES | TINE CAPACITY | |
| AB21 Bale Spears | Weight 66 kg (145 lb.) | NUMBER OF MAIN TINES 1 main tine | TINE CAPACITY 907 kg (2,000 lb.) | |
|---|---|---|---|---|
| AB31 Bale Spears | Weight 91 kg (200 lb.) | NUMBER OF MAIN TINES 1 main tine | TINE CAPACITY 1361 kg (3,000 lb.) | |
| AB32 Bale Spears | Weight 70 kg (155 lb.) | NUMBER OF MAIN TINES 2 main tines | TINE CAPACITY 1361 kg (3,000 lb.) | |
| AB42 Bale Spears | Weight 109 kg (240 lb.) | NUMBER OF MAIN TINES 2 main tines | TINE CAPACITY 1814 kg (4,000 lb.) | |
| AB43 Bale Spears | Weight 102 kg (225 lb.) | NUMBER OF MAIN TINES 3 main tines | TINE CAPACITY 1814 kg (4,000 lb.) | |
| Square | Weight 171 kg (375 lb.) | NUMBER OF MAIN TINES -- | TINE CAPACITY -- |
Nursery Forks
| Model | Width | Maximum Root Ball | Fork Opening (Parallel) | |
| NF44 Nursery Fork | Width 1194 mm (47 in.) | Maximum Root Ball 1118 mm (44 in.) | Fork Opening (Parallel) 457 mm (18 in.) |
|---|
Side Discharge Buckets
| Model | Type | Capacity | Weight | Width | |
| SA60 Side Discharge Bucket | Type Aggregate | Capacity 0.50 cu. yd. | Weight 805 lb. (365 kg) | Width 60 in. (1524 mm) | |
|---|---|---|---|---|---|
| SA72 Side Discharge Bucket | Type Aggregate | Capacity 0.67 cu. yd. | Weight 915 lb. (415 kg) | Width 72 in. (1829 mm) | |
| SD72 Side Discharge Bucket | Type Dust / Mulch | Capacity 1.33 cu. yd. | Weight 1120 lb. (508 kg) | Width 72 in. (1829 mm) | |
| SD84 Side Discharge Bucket | Type Dust / Mulch | Capacity 1.67 cu. yd. | Weight 1300 lb. (590 kg) | Width 84 in. (2134 mm) |
Scrapers
| Model | Weight | Width | |
| MS60 Scraper | Weight 458 lb. (208 kg) | Width 60 in. (1524 mm) | |
|---|---|---|---|
| MS72 Scraper | Weight 516 lb. (234 kg) | Width 72 in. (1829 mm) | |
| MS84 Scraper | Weight 589 lb. (267 kg) | Width 84 in. (2134 mm) | |
| MS96 Scraper | Weight 656 lb. (298 kg) | Width 96 in. (2438 mm) |
Rollout Buckets
| Model | Width | Weight | Heaped Capacity | |
| RB72 Rollout Bucket | Width 1850 mm (73 in.) | Weight 532 kg (1,170 lb.) | Heaped Capacity 0.91 m3 (1.19 cu. yd.) | |
|---|---|---|---|---|
| RB84 Rollout Bucket | Width 2150 mm (84.75 in.) | Weight 580 kg (1,275 lb.) | Heaped Capacity 1.10 m3 (1.44 cu.yd.) | |
| RB96 Rollout Bucket | Width 2480 mm (97.5 in.) | Weight 618 kg (1,360 lb.) | Heaped Capacity 1.28 m3 (1.68 cu. yd.) |
